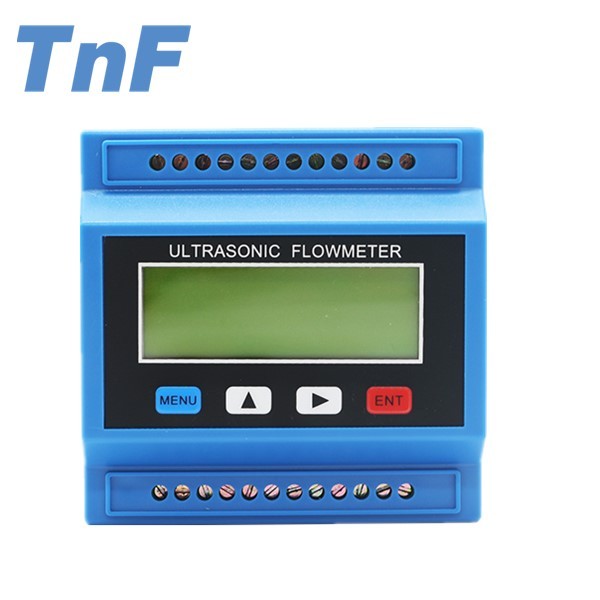

TNF-100M

DTI-100M low cost ultrasonic flowmeter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter. Users can even integrate a number of the modules into a multi-channel flow meter that can measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with all the channels.

  • 型号: TNF-100M

图片关键词

图片关键词

图片关键词

图片关键词

图片关键词

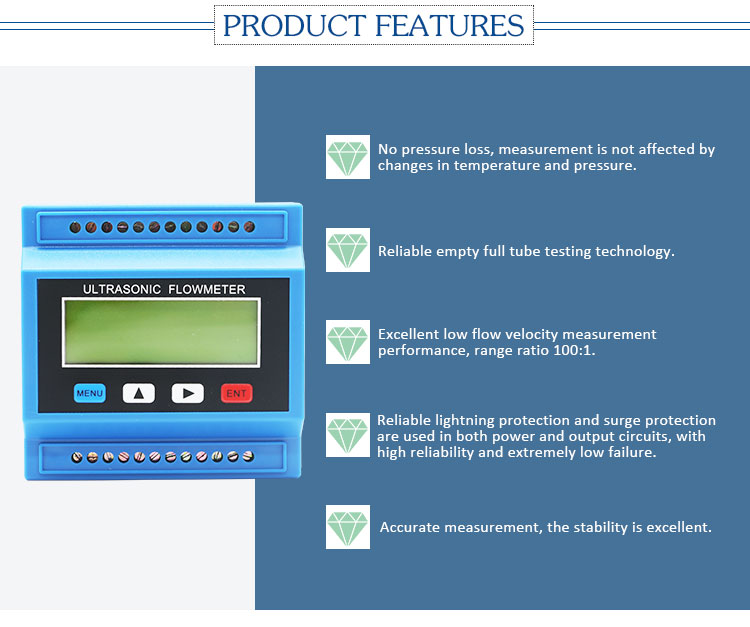

Features

Description

High accuracy

Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than 1%

Wide measuring

range

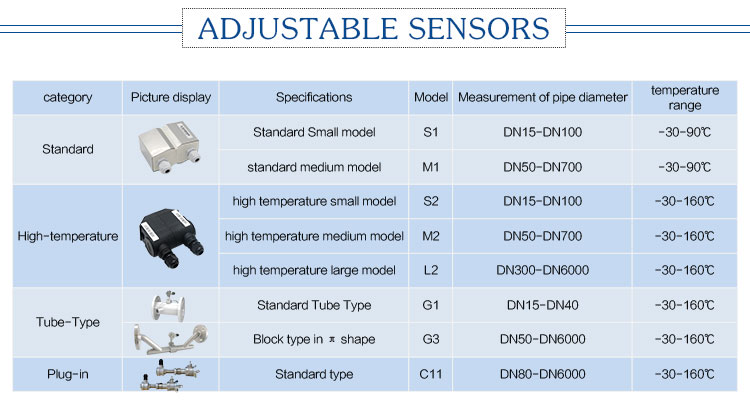

Several types transducer for selection, pipe size from DN15mm to DN6000mm

Far transmission

distance

Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m

Powerful Functions

Current output: 4-20mA, one channel, can be used for flow/heat transmitter;

OCT output: two channels, can be used for flow /heat switch;

Current input: 4-20mA, three channels, can be used for data collector;

Tri-wire resistance signal input (PT100): two channels, can be used for

calorimeter.

Wide Application

Its unique features, particularly low cost, small size, high performance,

local display, make it the ideal choice for industrial automation, processing control,

flow meter networking, composing multi-channel, high accuracy flow meter.
