Fixed Mounting

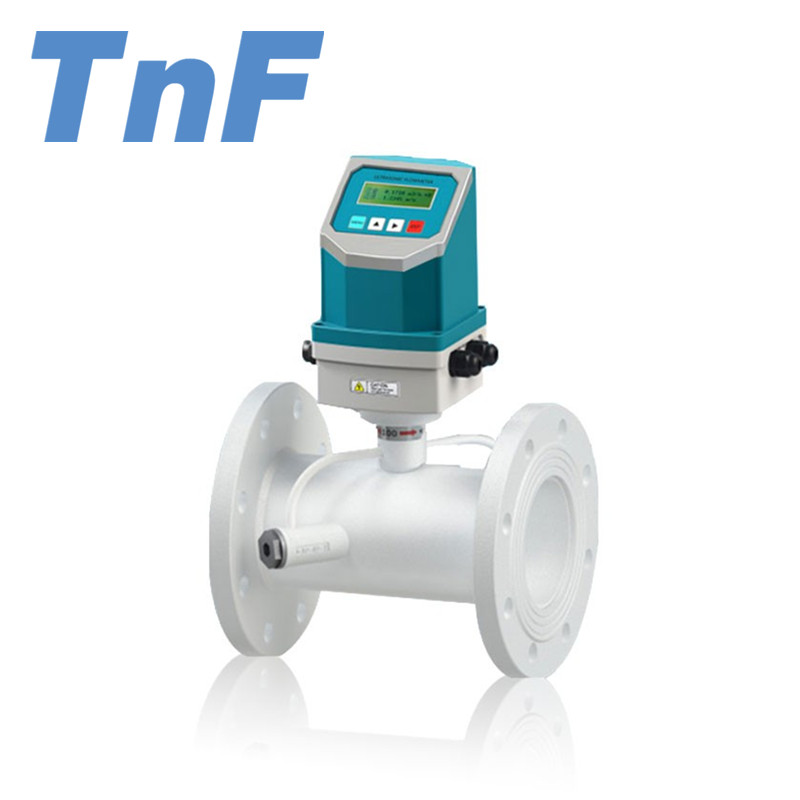

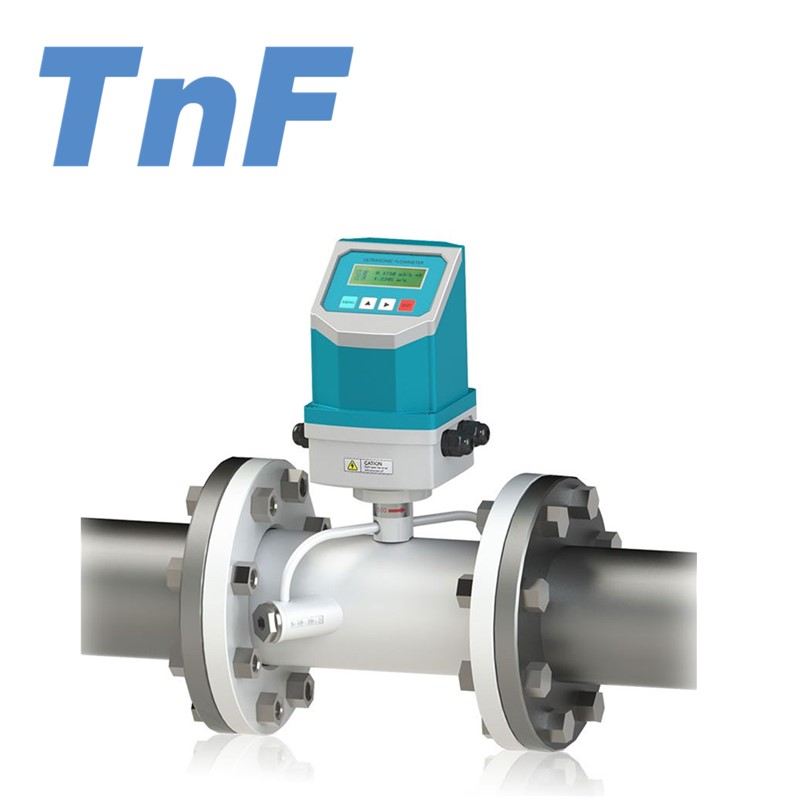

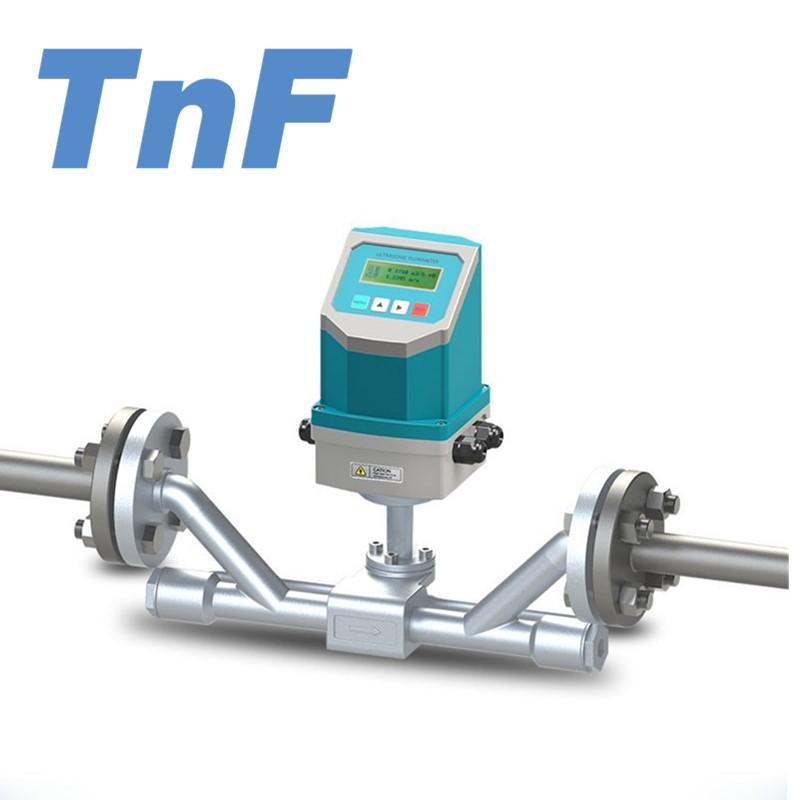

Inline

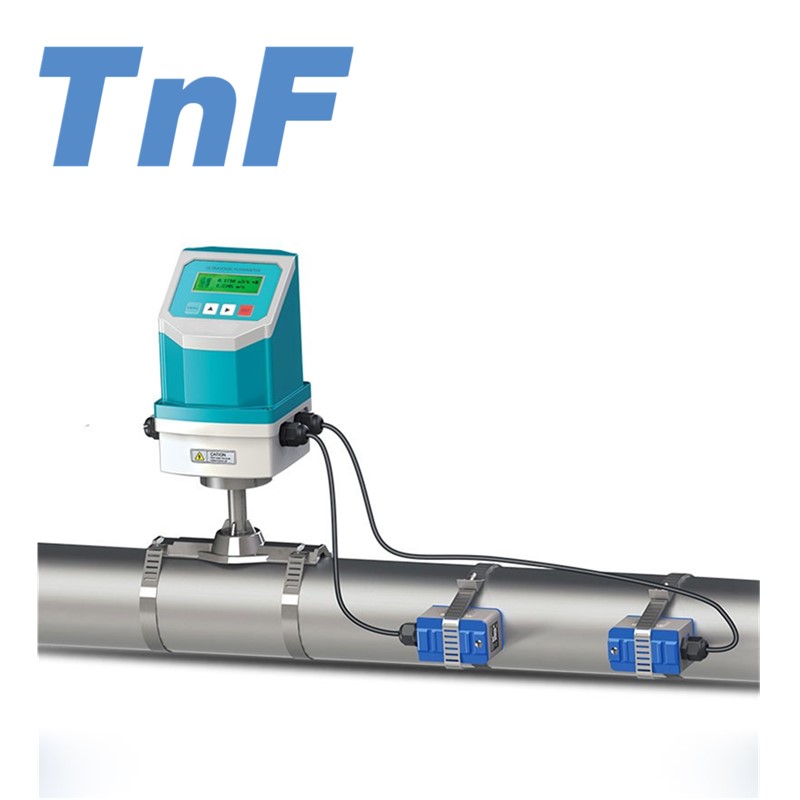

Clamp on

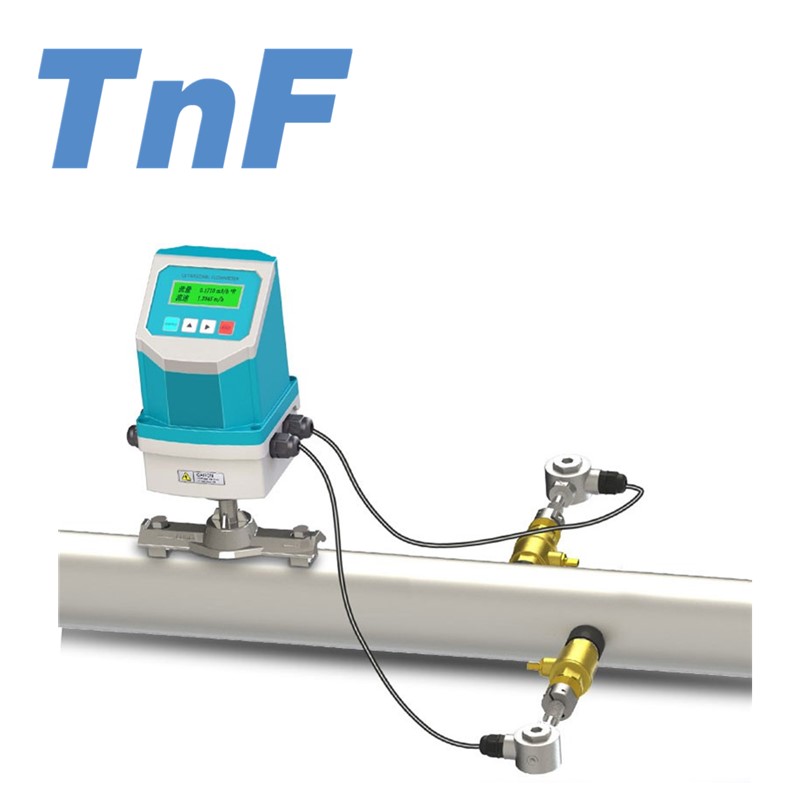

Insertion
Fix mounting
Installation and Wiring Diagram

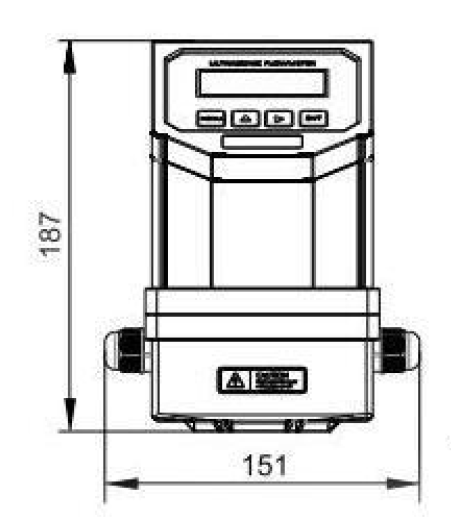

Tickness:117mm

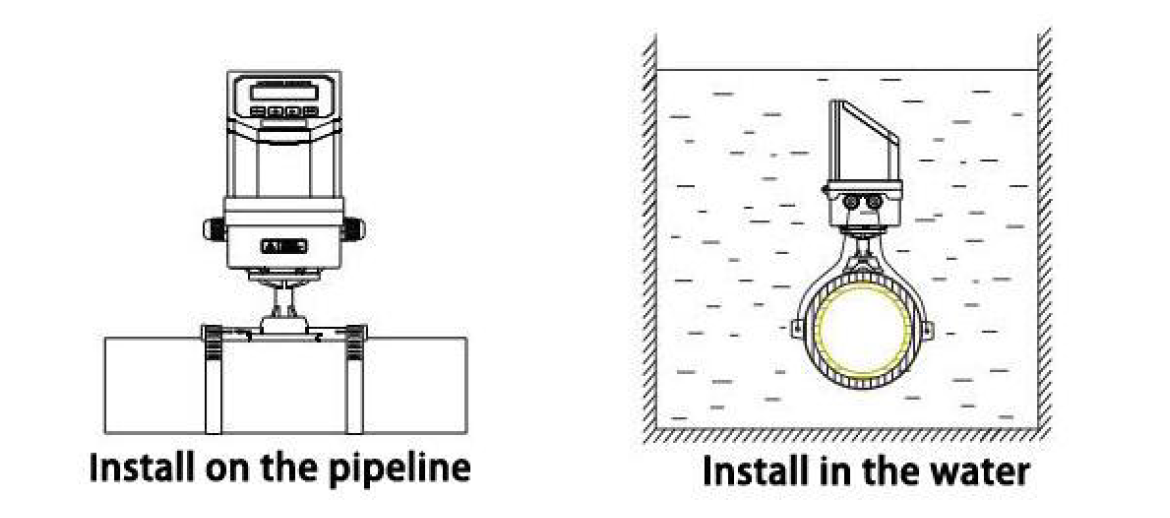

The converter is generally installed on the pipeline, sometimes installed in the water.

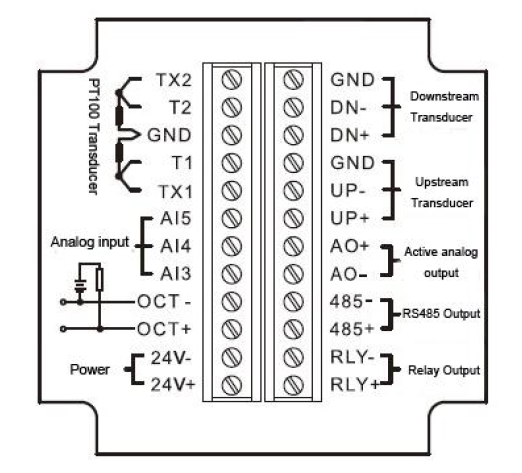

Wiring Diagram
Open the flip cover and complete the wiring. To avoid leaking, please tighten the water joint and screws of the back cover after wiring, then pot gel inside to reach IP68 protection class.
| Item | Performance & Parameter | |
| Flow Meter | Principle | Transit time ultrasonic flowmeter |
| Accuracy | ±1% | |
| Display | 2×20 character LCD with backlight, support the language of Chinese, English and Italian | |
| Signal Output | 1 way 4-20mA output, electric resistance 0~1K, accuracy 0.1% | |
| 1 way OCT pulse output(Pulse width 6~1000ms, the default value is 200ms) | ||
| 1 way relay output | ||
| Signal Input | 3 way 4-20mA input,, acquire signals such as temperature, press and liquid level. | |
| Achieve to heat measurement by connecting the temperature transducer PT100. | ||
| Data Interface | RS485 serial interface, upgrade the flowmeter software by computer, support MODBUS | |
| DataRecord | Thermal printer, external SD card(2G of capacity) | |
| PipeInstallation Condition | PipeMaterial | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steelproduct, liner is allowed. |
| PipeDiameter | 15~6000mm | |
| Measuring Medium | StraightPipe | Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump. |
| Type ofLiquid | Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. | |
| Temperature | -30~160℃ | |
| Turbidity | Less than 10000ppm and little bubble | |
| Flowrate | 0~±10m/s | |
| Working Environmen | Temperature | Convertor: -20~60; Transducer: -30~160 |
| Humidity | Convertor : 85%RH；TransducerI protection level:lP67 | |
| PowerSupply | 8 built-in Ni-MH batteries 1.2V(for over 20 hours of operation). Could operate 8 hours byconnecting 4-20mA signal output. 90V - 260V AC adapter | |
| PowerConsumption | 1.5W | |
